DESCRIPTION

Waldmann Part Number: 114084000-00803550

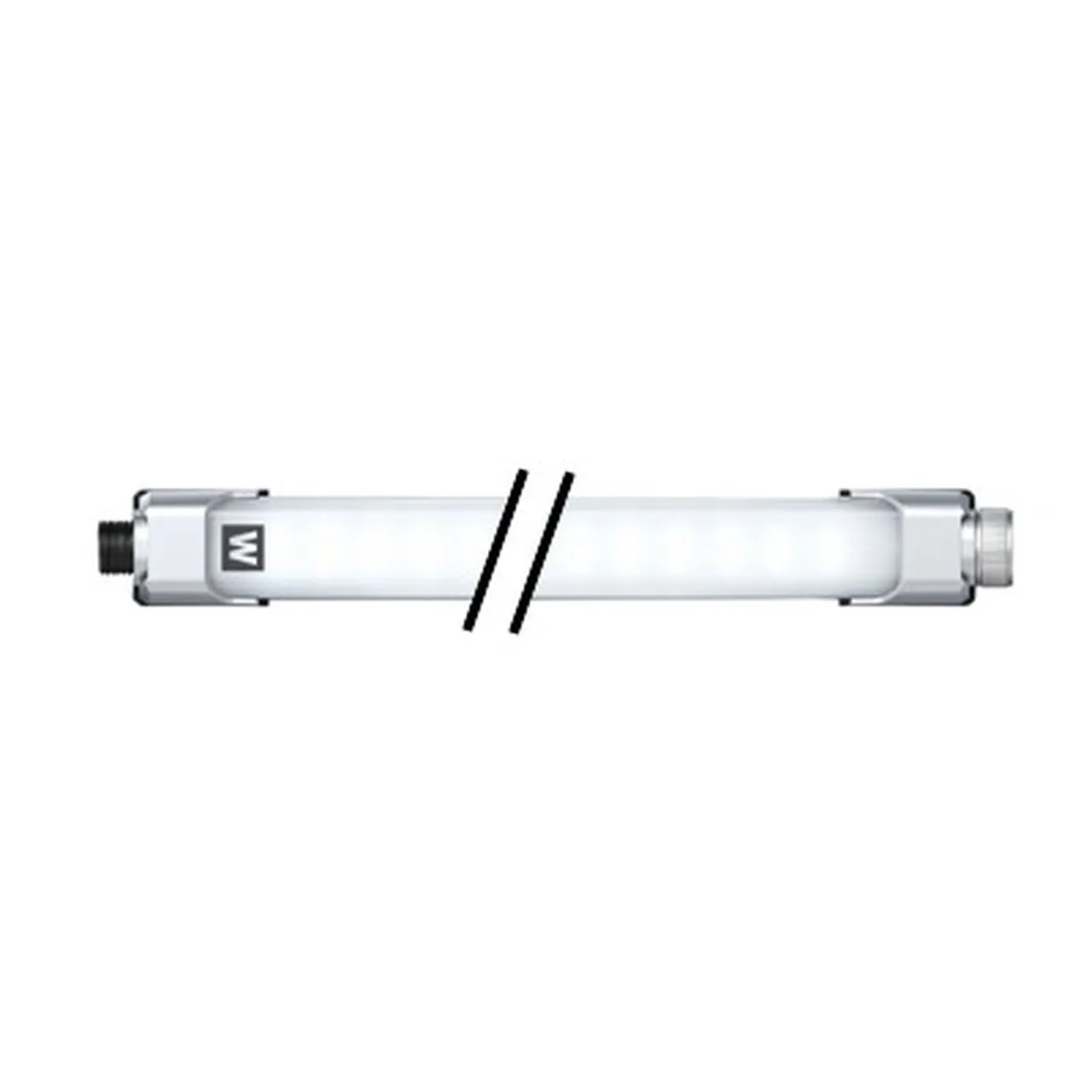

Waldmann's LINURA.edge LED surface-mounted lighting system is designed for applications with automated manufacturing in mind. With strength, flexibility and many options, its narrow profile and high intensity light make the LINURA Series ideal for use in conveyor or inspection lines, vision systems and any other automated manufacturing environment. The M12 connection and straightforward mounting system also make it extremely simple to connect and operate. This ADVANCED version allows for gradual dimming, automatic dimming when temperature limits are exceeded (at 122 deg F), and for connecting a RGB LINURA.edge.

*Brackets Included, Cable/Connection Sold Separately

• Advanced: Dimmable with external controller
• Slim design requires less space
• Quality smooth, even light distribution
• Latest LED technology

***Product image may be different than actual product.

SPECIFICATIONS

SPECIFICATIONS:

Brand:	Waldmann
Series:	LINURA.edge
Model:	LEA 900/850/MS
Current AC/DC:	DC
Voltage:	24
Length (in):	18.7
Width (in):	1
Bulb:
Mounting Type:	Bracket
Wattage:	7.5
Lumens:	945
Color Temperature:	5000K
Color Rendering Index (CRI):	80
Lens Material:	Acrylic
Lens Style:	Satine
Protection Index:	IP54
Operation:	External Controller
Technology:	Multi-Stage Dimmable with External Controller
Connection:	Cable Sold Separately
Certification:	ETL/cETL, CE Approved
Product Warranty:	5 Years

ACCESSORIES

Connection Options:

CONNECTOR/CABLE: 16' cord with 5-pin, A-coded for 24V, M12 connector, straight
CONNECTOR/CABLE: 16' cord with 5-pin, A-coded for 24V, M12 connector, 90 deg angled
CONNECTOR: M12 Connector, A-coded, 4 pin, male (for 24V)
CONNECTOR: M12 Connector, A-coded, 5 pin, male (for thru-wire)
Capacitive contact (manual) sensor with M12 plug connectors
Laser/Distance time-of-flight (automatic) sensor with M12 plug connectors

Power Options:

OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V,   50/60Hz

RESOURCES

Direct from Manufacturer: Usually Ships within 2-3 Business Days
