Product Details
＋
- Each NC120 CE module supports up to six
- NC415AV or NC404TS master stations, 64 room
- controllers (4 runs of 16 controllers each), and 16

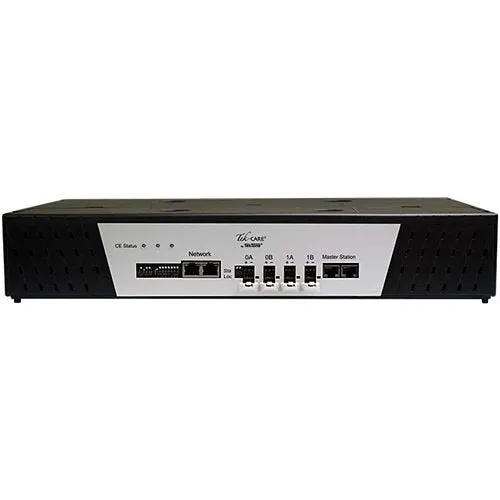

The NC120 Central Equipment (CE) Module is scalable so that up to 20 CE modules can be networked together. Each CE module provides connections and power for 64 room controllers and up to six master stations. (Limit of 4 master stations on a CE module when LI484P5 4-LED multicolor dome lights are connected.)
CE modules can be stacked on a shelf or rack mounted
The NC120 CE Module includes two field-replacable backup batteries that provide system power during the facility's switchover to emergency generator power. The NC120 also includes the LS450 Config Tool programming software.Main Features- Each NC120 CE module supports up to six
- NC415AV or NC404TS master stations, 64 room
- controllers (4 runs of 16 controllers each), and 16
- duty stations (4 duty stations per run).
- Network up to 20 NC120 CE modules for up to 120 masters and 1280 room controllers.
- Stackable shelf mount; 2U rack mount kit included.
- Programmable using our exclusive Config Tool software via laptop connected to the Tek-CARE® Network.
General InformationName: TekTone NC120 Central Equipment Module Supports up to Master Stations, TekTone Sound & Signal Mfg., Inc, TekToneCategory: TekTone, Communications, Nurse Call Systems, Control Panels & Modules
