Features:

• Maintenance reduced rear slip plates use oversized, encapsulated bearings that roll upward to protect against environmental debris
• Four hydraulic cylinders in a cross aligned arrangement provide secure lifting power and added safety
• Approach ramps are equipped with end sliders to minimize noise and reduce floor damage
• Adjustable maximum lift height suits locations with low ceilings
• On-board Filter/Regulator/Lubricator / FRL provides clean and lubricated air to help reduce maintenance and protect pneumatic systems
• Mechanical locking with pneumatic safety lock release from the control console
• Flow sensing valves within the hydraulic control circuit
• Redundant hydraulic safety system with cross aligned hydraulic circuits
• Illuminate alignment adjustment and calibration areas

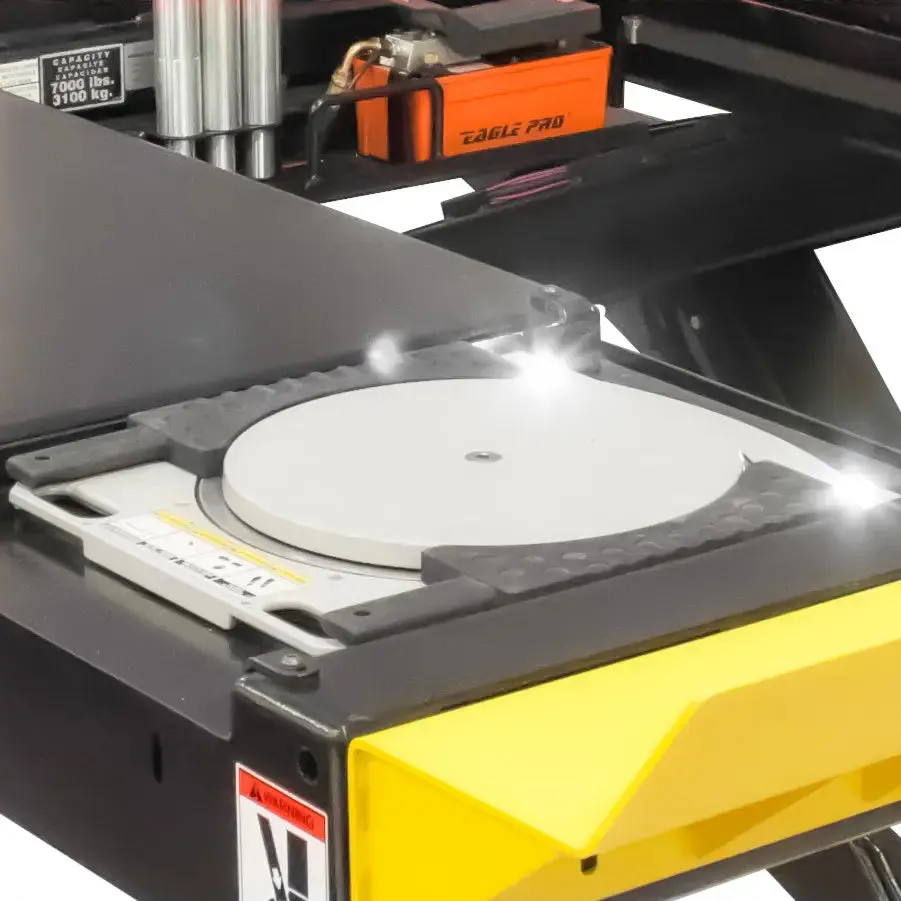

• Front LEDs are mounted in the front turnplate base to accommodate varying vehicle wheel tracks easily

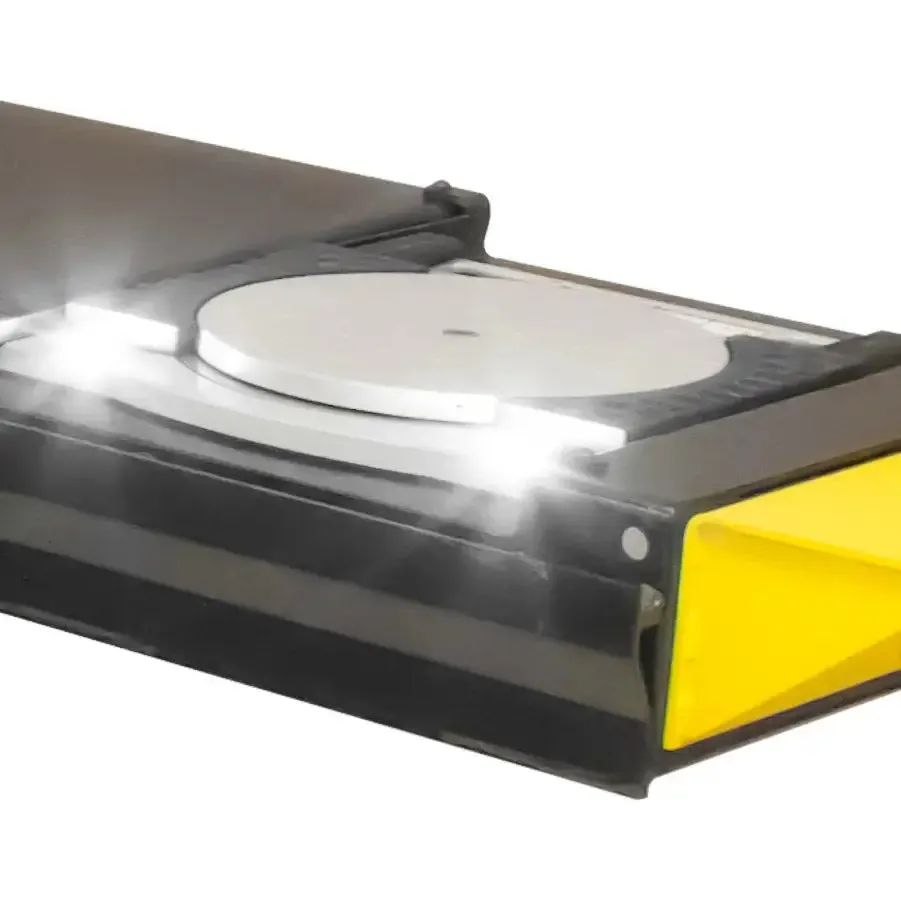

• Rear LEDs are strategically positioned on the rear slip plates
• Ease locking control activation from the lift console to reduce walking and effort from resetting alignment pins in plates
• Locking components made from corrosion-resistant material
• Patented auto on/off light feature ensures no power when operating in the hazard zone
• Patented light mounting position optimizes viewing angle, illuminating key inspection and adjustment areas
• Approved for use in Class 1 Division 1 environments for both surface and flush mount models
• Tested and validated by an independent third party to the ANSI/ALI automotive lift standard, ALCTV-2011
