Freefly

Freefly has been focused on building the world's most efficient professional drone and filming ecosystem for the last decade. They went from a garage startup to powering the majority of film and tv productions in under 5 years. While their early focus was film and video, they realized along the way their drones could do so much more.

Astro

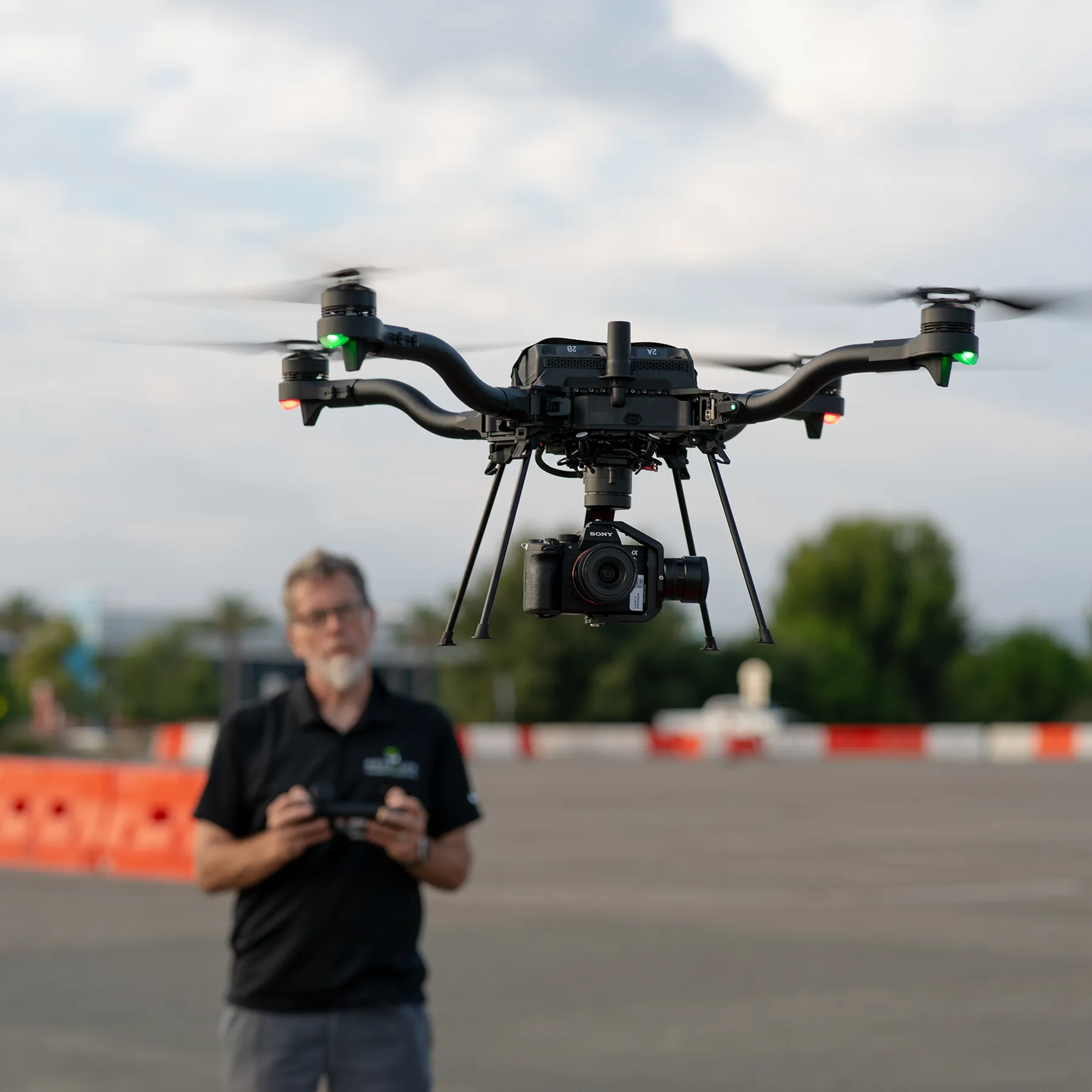

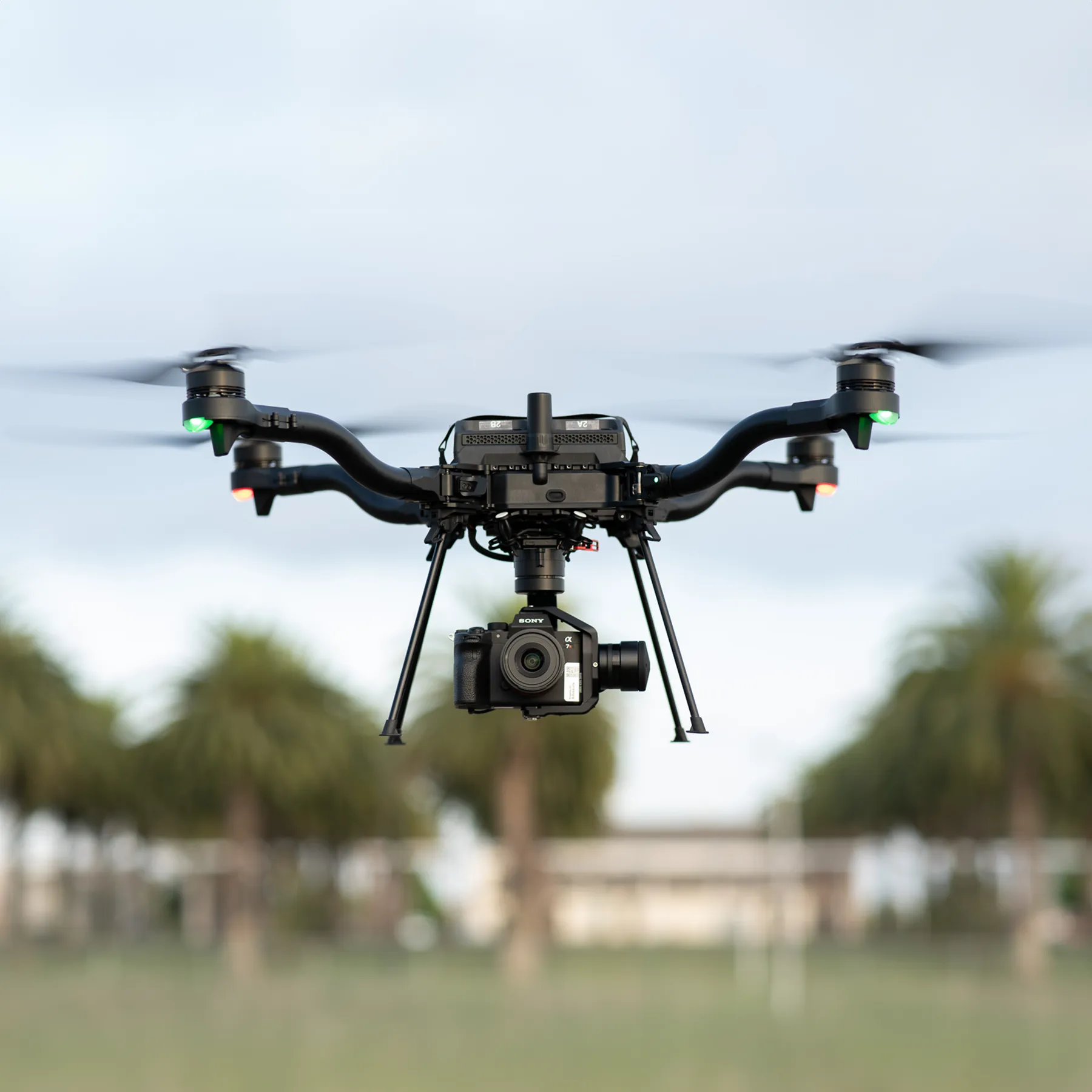

Astro is Freefly’s compact industrial drone platform.

Freefly understands the need for quality tools. For more than 10 years Freefly aircraft have carried cinema cameras for Hollywood and high-end productions around the world. It carries valuable payloads in high-pressure situations. We also understand the need for flexibility. Astro’s interface specs are open, making it a flexible and reliable tool to get your new ideas in the air.

Each Astro Map includes the the basis of your Mapping drone kit:

1. Astro Base airframe* (simple tools, and some spare bits)
2. 61MP Mapping Payload (Quick-detach, vibration isolated Freefly gimbal Sony Alpha 7R IVA Sigma 24mm f3.5 lens)
3. The Freefly Pilot Pro controller (Herelink RF)

*Astro needs a minimum of 2 SL8 Batteries and 2 SL8 Chargers to fly, which are not included in this kit and need to be purchased separately.

Astro is designed and assembled in USA.

Notes

• Pilot skill with Manual Mode is required for Emergency Procedures.
• Astro uses two Freefly  per flight (not included in this kit). We recommend 4 SL8 batteries and 2 SL8 Fast Chargers to get flying.
• Works with , through a user-supplied ground station computer (optional)
• LTE modem works in the United States only.

Specs

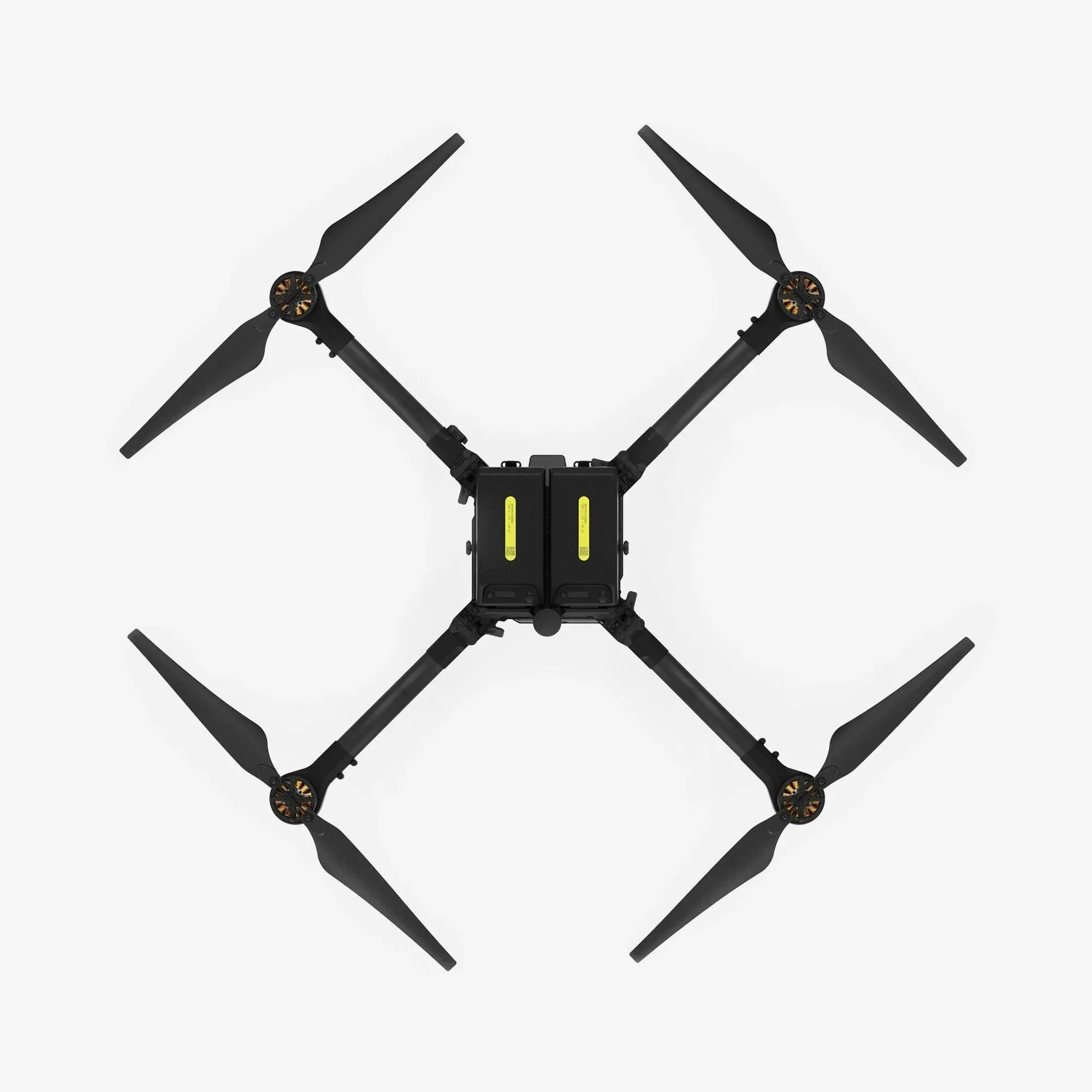

Astro Aircraft

• Up to 37 minutes flight time.
  • Typical flights with Mapping Payload are 25-32 minutes, depending on speed / conditions.
  • See  for additional details
• 1500 grams max payload

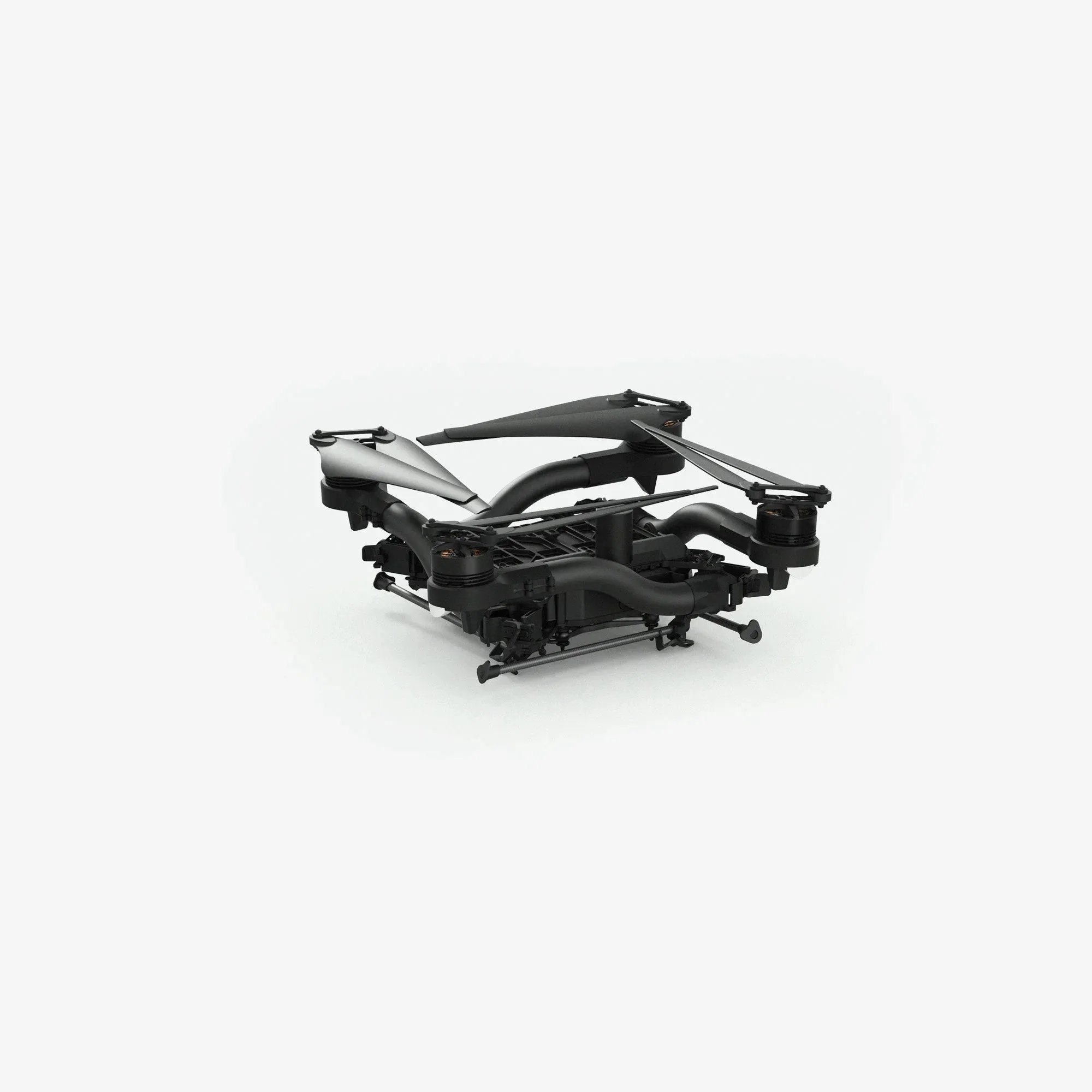

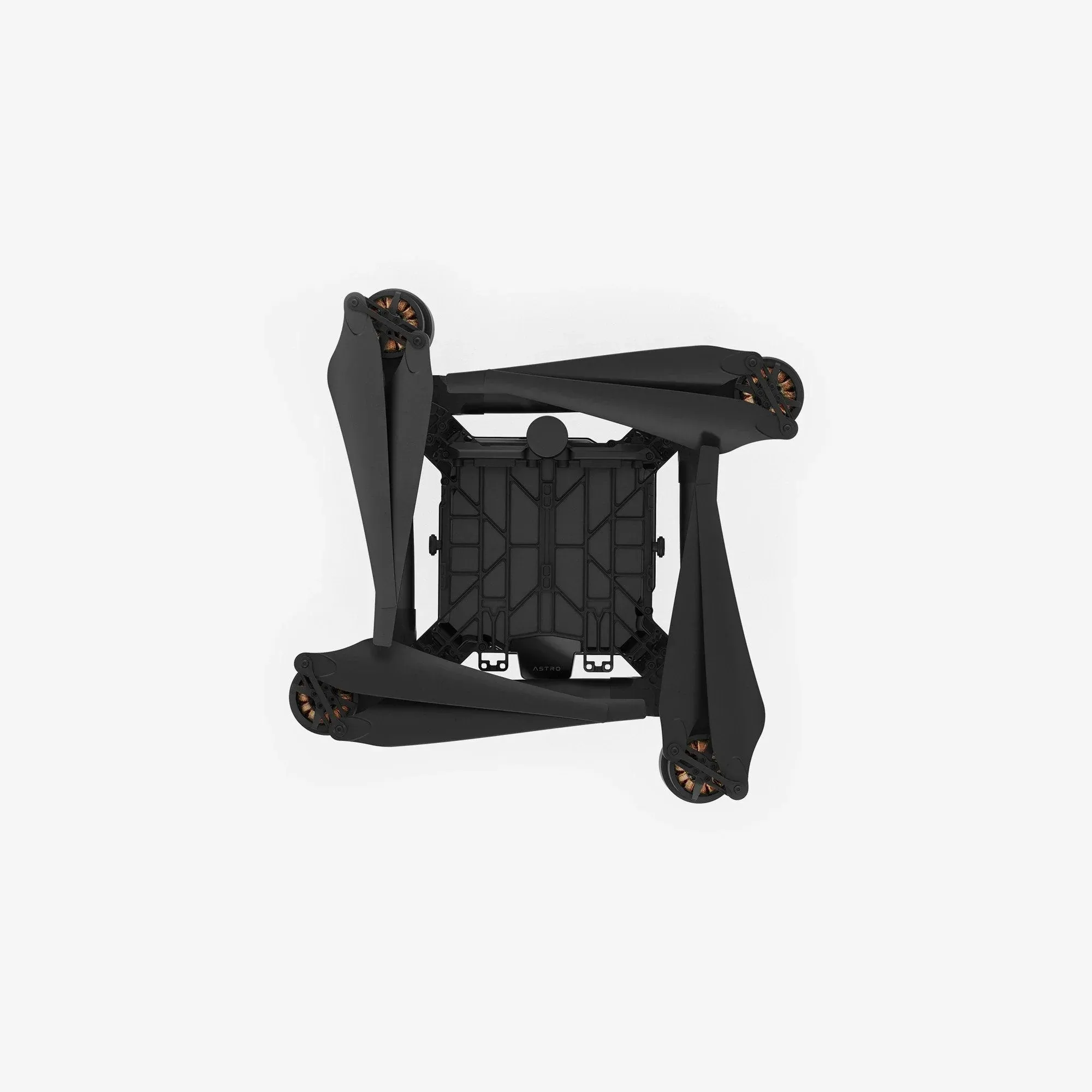

• Booms fold up to ½ the diameter
• Vibration isolated payload attachment
• Additional specs in the

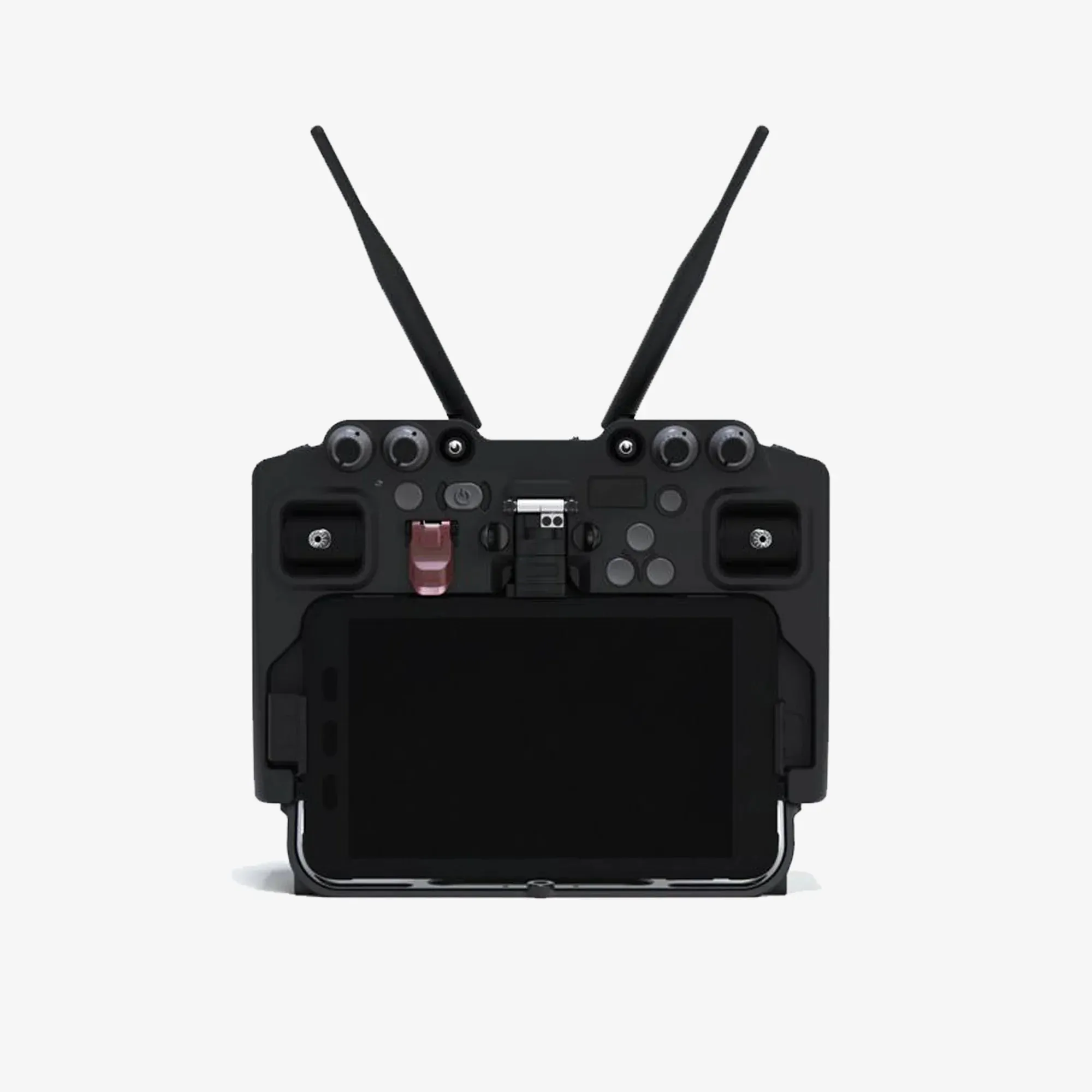

Pilot Pro Controller

• Freefly pilot controller
• High resolution rockers for precise camera / gimbal control
• Modular to accept a variety of radio transmitters
  • Herelink Radio (2.4 GHz)
  • Doodle Labs Radio or other NDAA compliant radio option coming next
• Internal battery with external power inputs to support hot-swapping for maximum uptime
• Emergency kill-switch
• Discreet physical buttons for all key user actions
• Includes custom configured, pre-installed 8" Samsung Galaxy Tab Active3 tablet
• Realtime drone and gimbal speed limits
• Custom padded neck strap

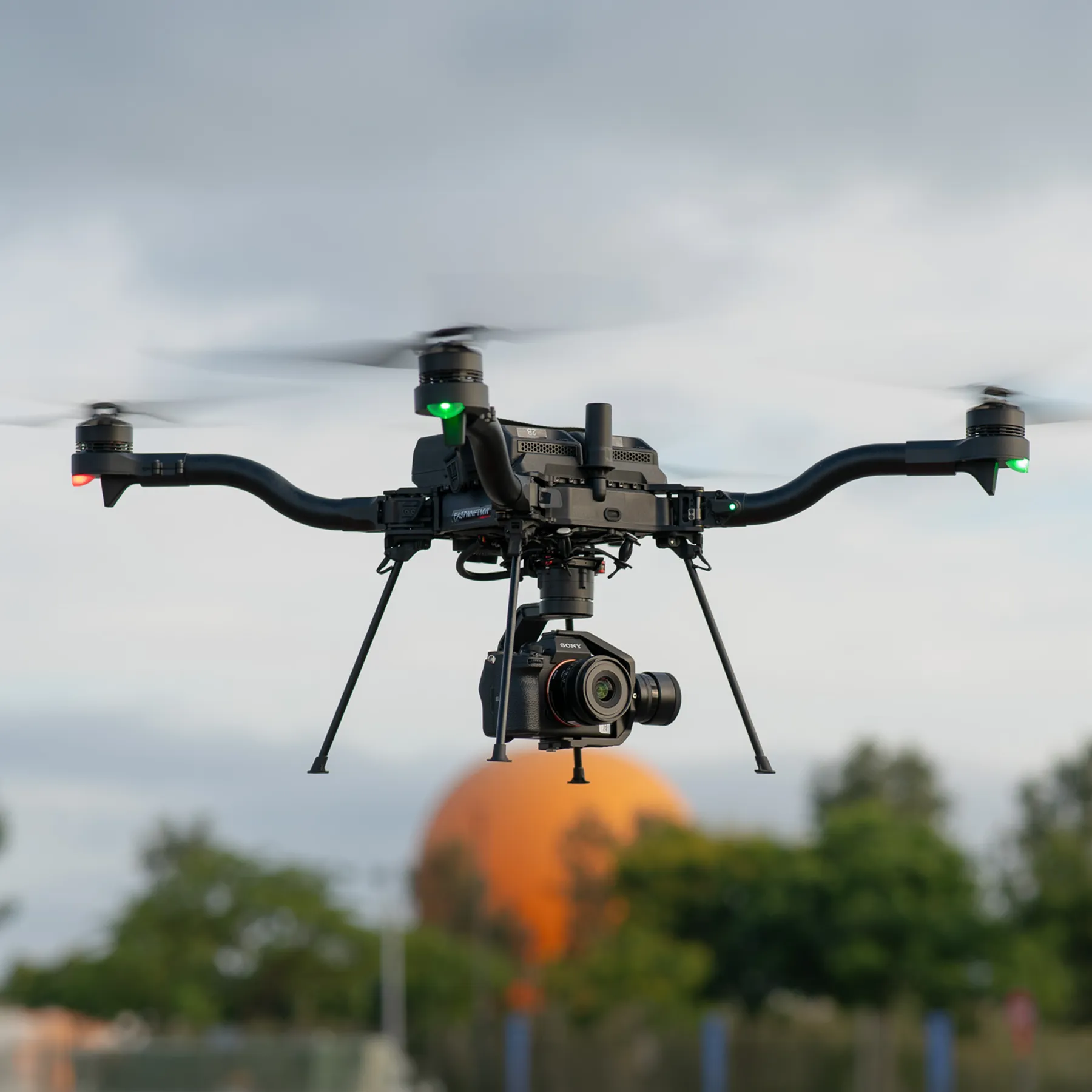

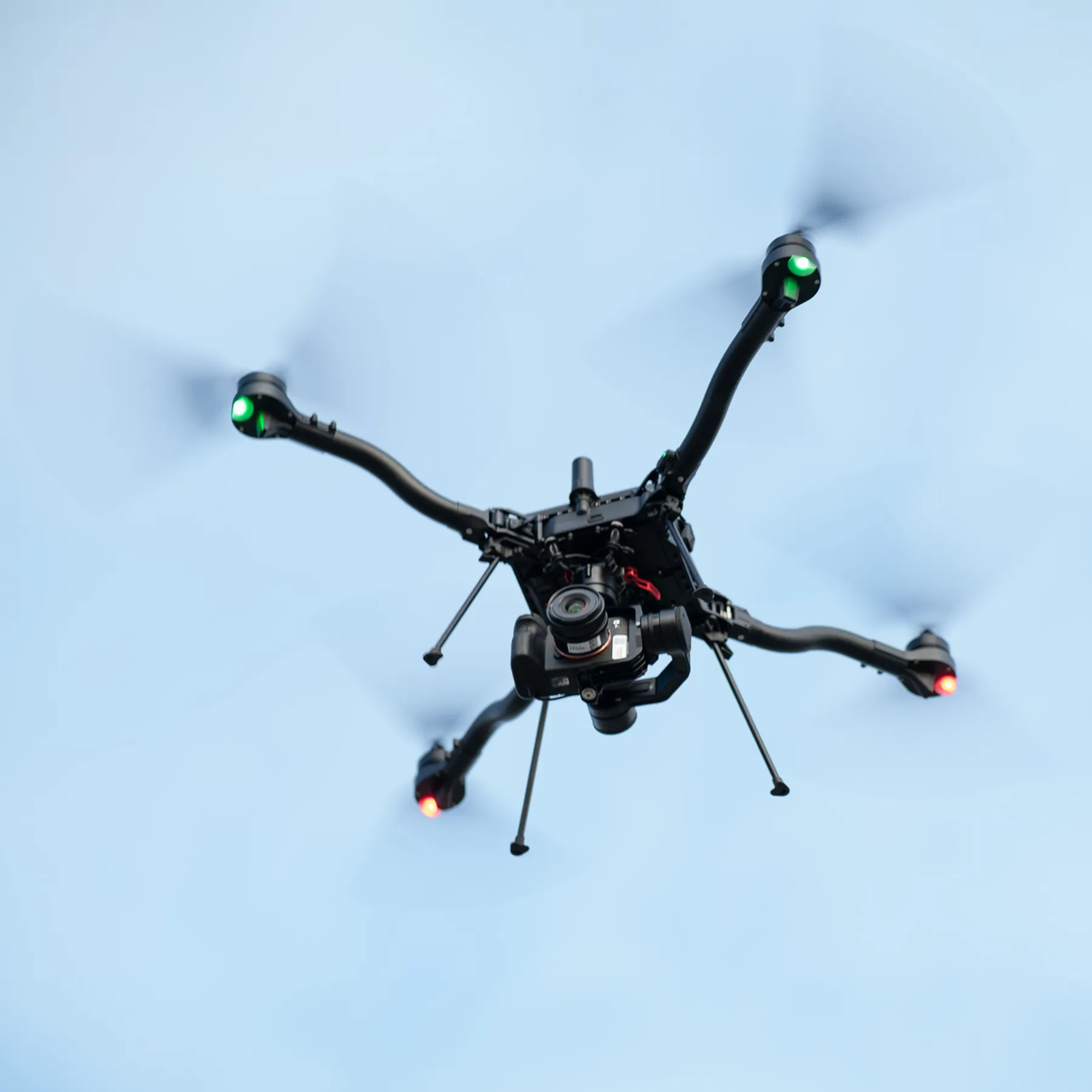

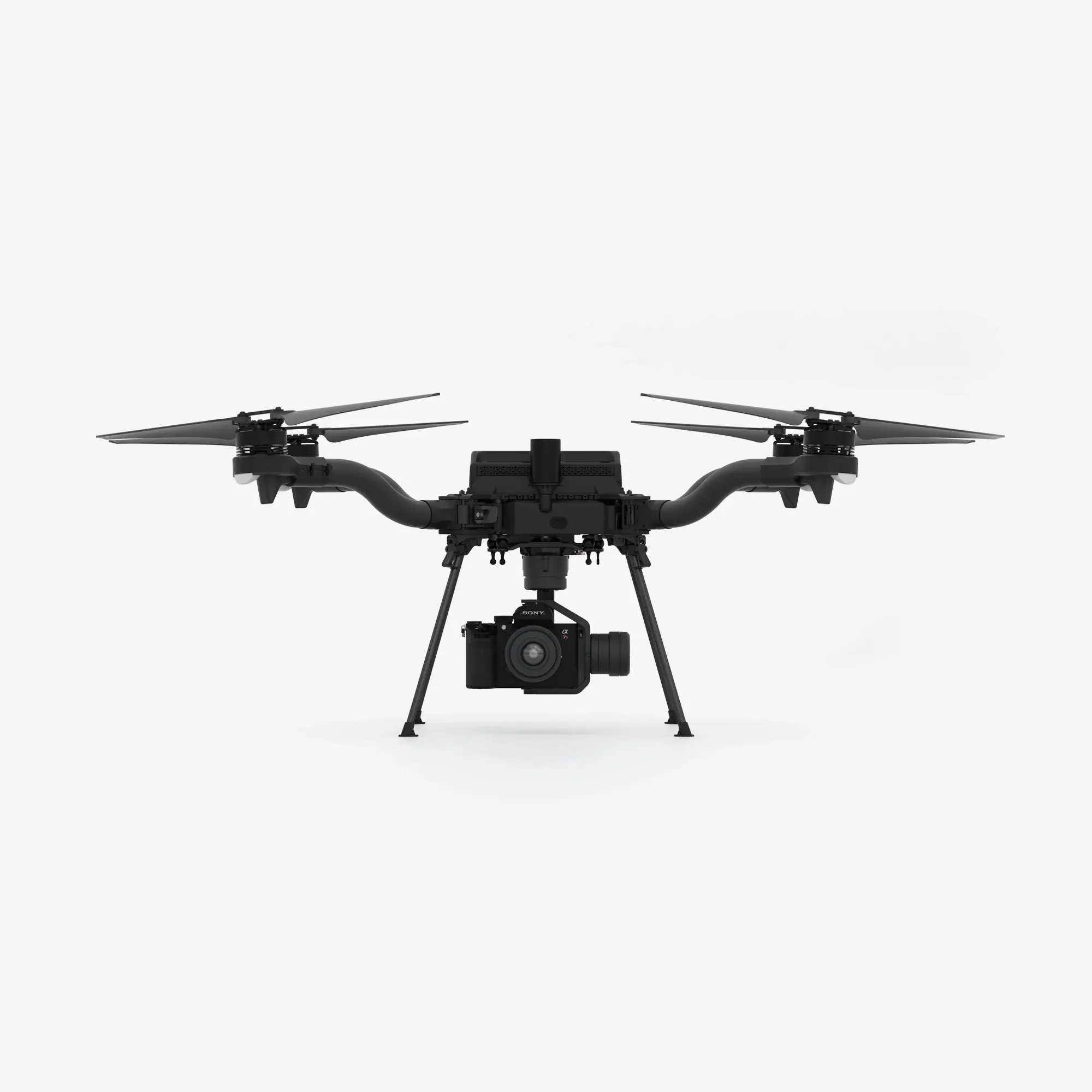

Mapping Payload

• Freefly Mapping Gimbal
• Sony Alpha 7R IVA camera body (61 megapixel resolution)
• Sigma 24mm f3.5 mapping lens (p/n 404965)
• Camera and gimbal control from Herelink pilot controller
• Vibration Isolator with Smart Dovetail

Astro Travel Case

• Holds everything included with the Mapping Kit (except Pilot Pro controller)
• Removable battery tray holds up to 6 Freefly SuperLight batteries*
• Custom cut foam, tested to protect against drops from 1 meter
• Removable/replaceable payload insert for Mapping Payload
• Submersible and dust tight (MIL-STD 810G)
• Airline checkable
• Case dimensions: 31x24x15 inches / 79x61x38 cm
• Weight of Astro Map in case (no batteries): 26.5 kg / 58.5 lbs

Batteries

• SL8-Air Batteries
• Astro uses two SL8-Air batteries per flight
• Voltage: 21.6 V (6S)
• Capacity: 7.3 Ah, 157 Wh
• Weight: 2.25lbs
• Chemistry: Lithium-Ion
• Auxiliary output: USB-C Power Delivery

Chargers

• SL8 Fast Charger
• One charger charges one Freefly SL8-Air battery at a time
• Approximate charge time for one SL8-Air battery, from 0%: 90 mins
• Input: 100 / 240 VAC
• Output: 200 Watts
• Supplied with North America power cable (NEMA 1-15 ungrounded, Type A).
  • Power cable is replaceable (IEC320 connector).

Astro is designed and assembled in USA.

In the Box

(1) Astro Base (with landing gear and props)
(1) Mapping Payload
(1) Freefly Mapping Gimbal
(1) Sony Alpha 7R IVA 61MP camera body (pre-installed in gimbal)
(1) Sigma 24mm f3.5 mapping lens (p/n 404965)
(1) USB - C thumb drive
(1)  Foam insert set for Astro Travel Case
(1) Vibration Isolator with Smart Dovetail
(1) Hex drivers, 1.5 mm, 2 mm, 2.5 mm
(4) Proptectors
(1) Spare Parts
(1) Extra Proptector
(4) Spare isolators
(2) Rubber hole grommet
(1) Travel Case with custom insert
(1) Pilot Pro Controller
(1) Samsung Active Tab 3 (pre-configured and installed into controller)
(1) Herelink 1.1 RF (2.4 GHz)
(1) Custom padded neck strap

*Batteries and chargers needed for flight not included, sold separately
